JS-26 Weighing Scale + Pneumatic Sealing

JS-26 Pneumatic Sealing+Weighing Scale

Automatic Computerized Weighing & Packaging Machine

Machine Features:

  • PLC Control + Touch Panel for ease operation.
  • Touch Panel for easy usage to set up: Filling weight, cutting mode(eye mark or length cutting), bag length, speed, counter, sealing temperature, memory record…etc.
  • Auto eye mark tracing in a short time.
  • Pneumatic sealing enable to set up sealing & cutting time according request.
  • Pneumatic sealing construction with SMC cylinder drive for stable sealing performance.
  • Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
  • Pneumatic sealing type for nice sealing packaging performance.
  • Auto warning display for quick trouble shooting display.
  • Multiple memory programs for record different packaging data.
  • Enable to adjust filling weight directly through the panel.

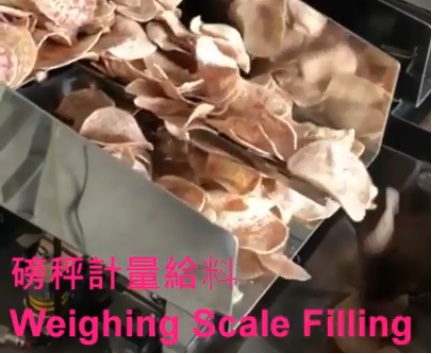

  • 2 stages vibration loading with large & micro-feeding for smooth & accurate filling.
  • Film tension control for stable film filling & pulling.
  • Individual control for film pulling, sealing and cutting.
  • All component in direct contact with product are made with stainless steel or food sanitary standard.
  • PID function Temp. controller for each sealing part with stable sealing performance.
  • Machine can be made 1, 2 or 4 scales according to request.
  • Bag width is adjustable by changing bag former guide.
  • Attached speed adjustable 1M product output conveyor.
  • Product input conveyor is optional device, include auto refill function to work with packaging machine.

Optional Device:

Date coder, hopper level indicator, nitrogen air connector, product input conveyor…etc., and other required device upon request.

Applicable Products:

Various powder & granule products, such as:sugar, salt, macaroni, chips, popcorn, cracker, candy, tea, beans, peanuts, pet food, screws, washer…etc., or other related products.

Applicable Film:

Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.

Sealing Type:

JS-26 Pneumatic Sealing+Weighing Scale

Elementor Pro

View Details!
Sealing Style

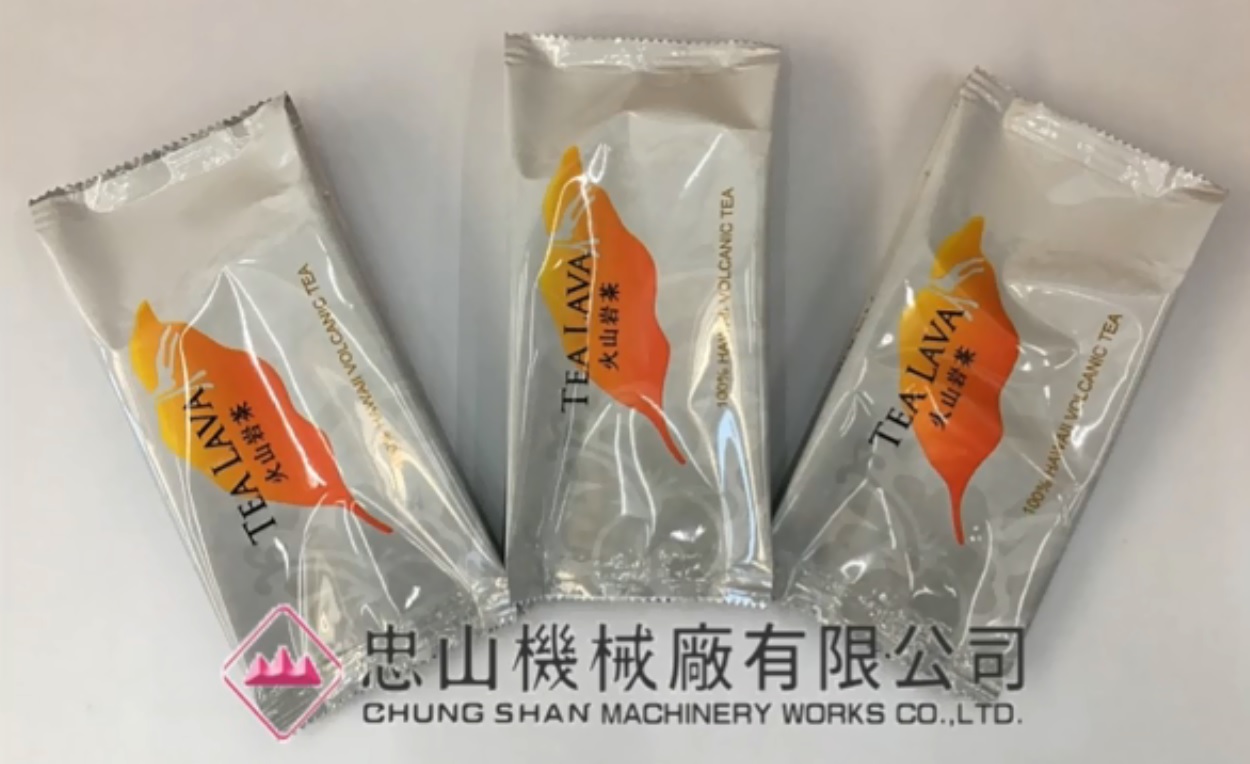

Pillow type packaging(one option)

Power

220V, 50 or 60 Hz, single phase(upon request)

Film Width

240-480mm

Bag Length

150-300mm

Filling Weight

30-100g/100-1000g/1000-2000g (varies with product density)

Packaging Speed (1 scale)

About 8-10 bags/min

Packaging Speed (2 scales)

About 10-15 bags/min

Packaging Speed (4 scales)

About 20-25 bags/min

Machine Dimension

240 x 155 x 235cm(L x W x H)

Net Weight

880kg

Note:

  • Other packaging size available upon request.
  • Filling range& Packaging speed will be differ from product density, weight & film.
  • 6kg/cm2 compressed air with dry air filtering system self-prepared is required.
