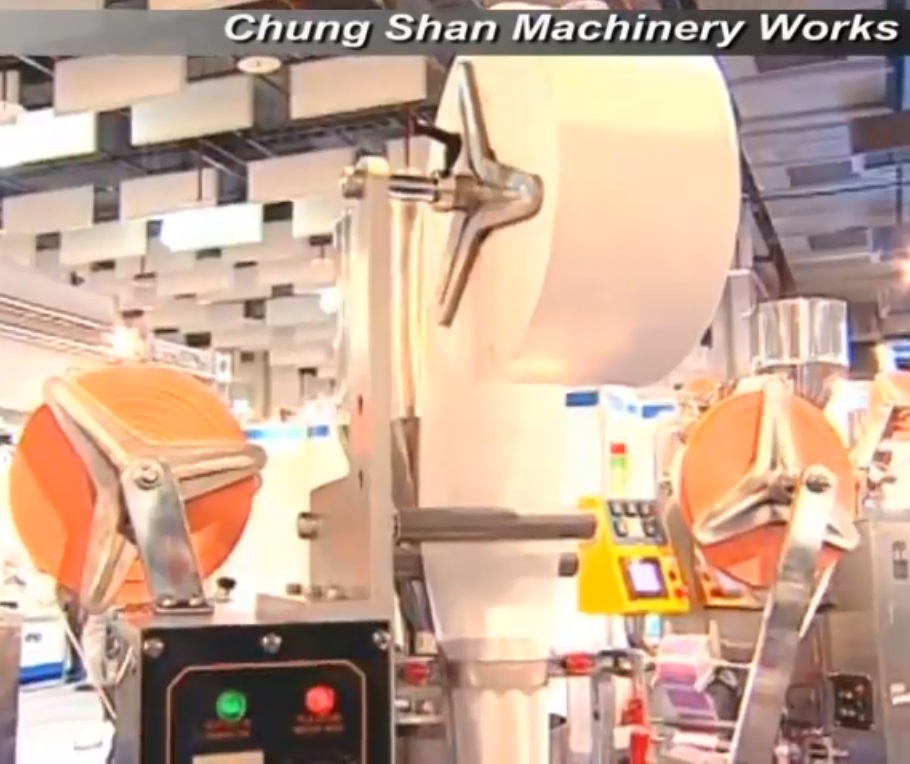

JS-6A Tea Bag with String & Tag

JS-6A Tea Bag with String & Tag

Automatic Quantitative Filling & Packaging Machine

Machine Features:

  • Auto attach string & tag without staple, meets food sanitary standard.
  • Volumetric Filling method with metering dish & cups.
  • Metering cups are easily to change within few minutes.
  • 2 tag rolls working at the same time for stable tea bag hanging.
  • Enable to equip with agitator according to request.
  • All component in direct contact with product are made with SS304 or food sanitary standard.
  • Individual temperature controller with PID function for each sealing part.
  • Extension area in the bottom of bag to extend tea leaf completely.
  • Bag width is adjustable by changing bag former guide.
  • Suitable for cotton filter paper material.
  • Machine build by iron cast for long term and operation durability.



Optional Device:

Quantity warning, level indicator, input conveyor, output conveyor and other required device upon request.



Applicable Products:

Powder related products, such as: coffee powder, tea, herbs, ginseng…etc.



Applicable Film:

Heat seal suitable cotton filter paper, cotton string and adhesive tag.



Sealing Style:

JS-6A Tea Bag with String & Tag

Elementor Pro

View Details!
Motor

1/4HP standard Motor x 1, Reducer x 1

Power Source

220V, 50 or 60 Hz, single phase(upon request)

Film Width

120-160mm

Bag Length

59mm

Filling Range

1-5g (varies with product density)

Packaging Speed

About 30-50 bags/min

Machine Dimension

125 x 115 x 195cm(L x W x H)

NET Weight

450kg

Note:

  • Other packaging sizes available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
