JS-32 Double Wrapped Packaging

JS-32 Double Wrapped Packaging

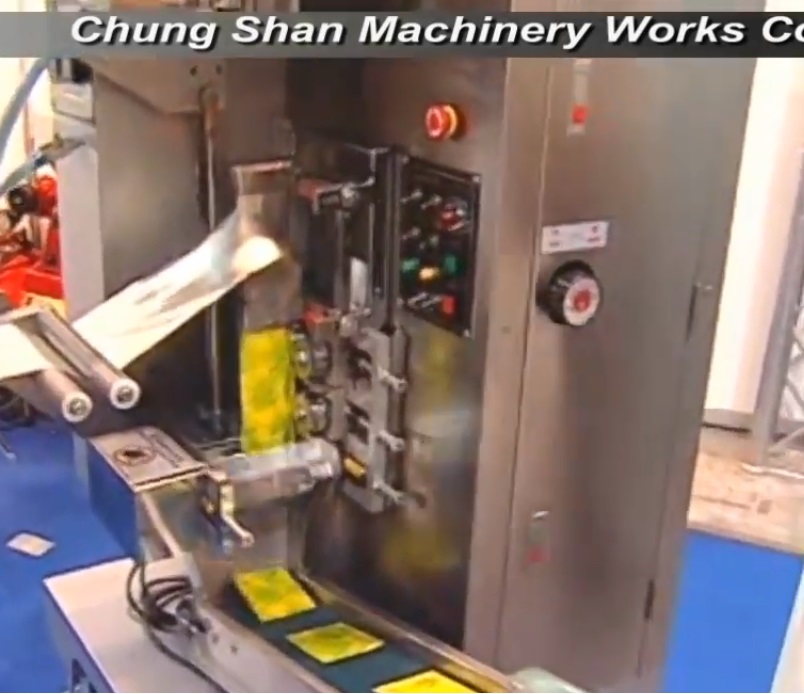

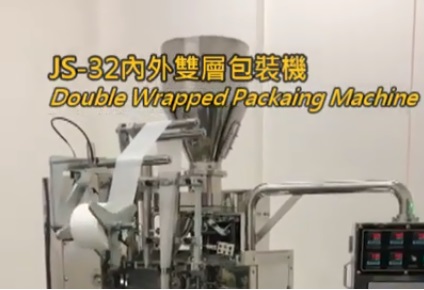

Automatic Quantitative Double Wrapped Filling & Packaging Machine

Machine Features:

  • Fully automatic packaging process from inner to outer bag.
  • Inner bag to outer bag with cylinder & sensor control to ensure completed packaging.
  • Multiple sensors at packaging material for user friendly operation.
  • Volumetric Filling method with metering dish & cups.
  • Metering cups are easily to change within few minutes.
  • Enable to equip vibration& agitator to enhance product filling fluidness according to request.
  • All component in direct contact with product are made with SS304 or food sanitary standard.
  • Individual temperature controller with PID function for each sealing part.
  • PLC control photocell device for outer bag, auto tracing eye mark in a short time.
  • Machine build with iron cast with stainless steel frame.
  • Pneumatic outer bag sealing available upon request.
  • Vibration loading system upon request.
  • Servo type with touch panel construction can be made according to request.


Optional Device:

Date coder,hopper level indicator, output conveyor, nitrogen air connector, height adjustable dish and other required device upon request.


Applicable Products:

Powder related products, such as: coffee powder, tea, herbs, ginseng …etc.


Applicable Film:

Inner bag: Heat seal suitable filter paper, such as: cotton filter paper.

Outer bag: Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Type:

JS-32 Double Wrapped Packaging

Elementor Pro

View Details!
Sealing Style

3 sides sealing


220V, 50 or 60 Hz, single phase(upon request)

Inner Bag Size

(W)70 x (L)90mm

Outer Bag Size

(W)100 x (L)120mm

Filling Weight

1-5g / 5-10g / 10-20g / 20-30g (varies with product density)

Packaging Speed

About 30-45 bags/min

Machine Dimension

155 x 135 x 235cm(L x W x H)

Net Weight



  • Other packaging sizes available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
  • 6kg/cm2 compressed air with dry air filtering system self-prepared is required.
