JS-8A Mechanical Type

JS-8A Mechanical Type

Automatic Quantitative Powder/Granule Filling & Packaging Machine

Machine Features:

  • Mechanical type operation with motor, reducer, chains, and gear.

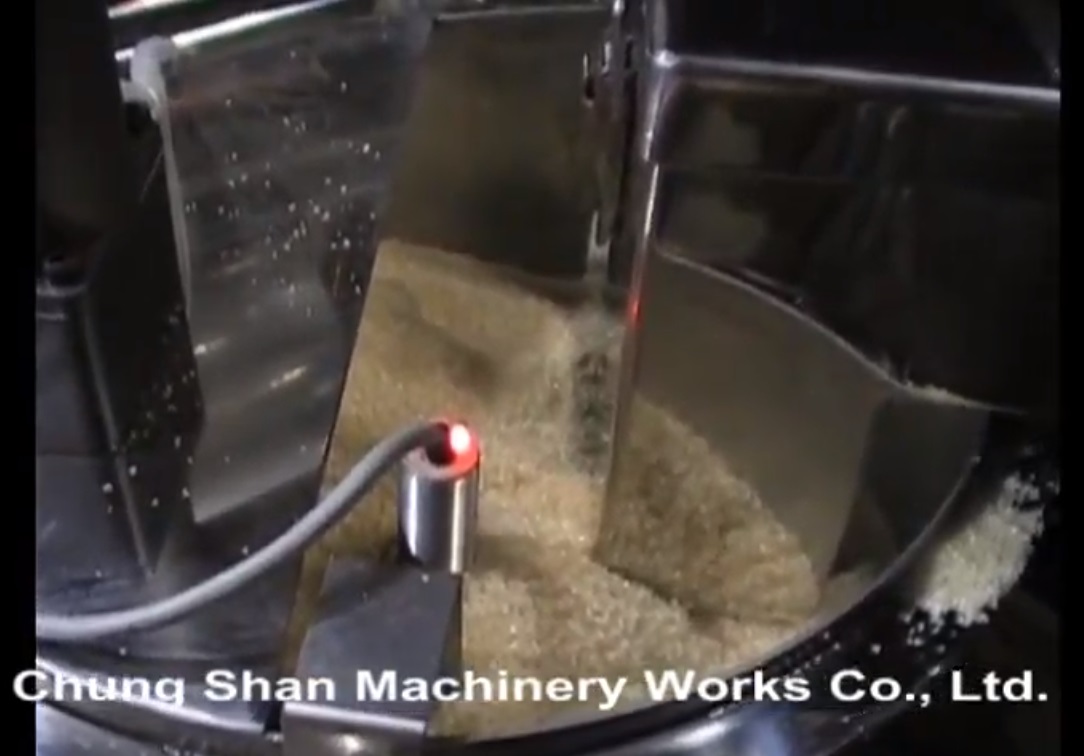

  • Vibration loading ensure smooth filling process.
  • Volumetric Filling method with metering dish & cups.
  • Metering cups are easily to change within few minutes.
  • All component in direct contact with product are made with SS304 or food sanitary standard.
  • PLC controlled photocell device with auto track function.
  • Individual Temp. controller with PID function for each sealing part.
  • Bag width is adjustable by changing bag former guide.
  • Bag length is adjustable on the machine directly.
  • suitable for pillow type packaging.
  • Machine constructed by iron cast for long time operation stability & durability.
  • servo type operation available upon request.


Optional Device:

Date coder, Quantity warning, level indicator, input conveyor, output conveyor, nitrogen air connector and other required device upon request.


Applicable Products:

Powder & granule, such as: sugar, salt, beans, peanuts, seasoning powder, coffee powder, detergent powder…etc.


Applicable Film:

Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Type:

JS-8A Mechanical Type

Elementor Pro

View Details!

Mechanical motor

Power Source

220V, 50 or 60 Hz, single phase(upon request)

Film Width


Bag Length


Filling Range

100-250 / 250-500g(varies with product density)

Packaging Speed

About 15-30 bags/min

Machine Dimension

150 x 110 x 212cm(L x W x H)

NET Weight



  • Other packaging sizes available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
