JS-28 Servo Type + Vibration Tray Loading
Automatic Filling & Packaging Machine
Servo Type
Servo Motor Type Machine Features：
- Servo motor with Touch panel for user friendly operation.
- Special design filling system for accurate and efficient packaging process.
- Touch panel enable to set up: cutting mode (eye mark cutting or length cutting), packing speed, knocker, counter, quantity warning, sealing temperature, packaging data memory…etc.
- Multiple memory programs to record/read different packaging data.
- Auto eye mark tracing in a short time.
- Auto warning display for quick trouble shooting.

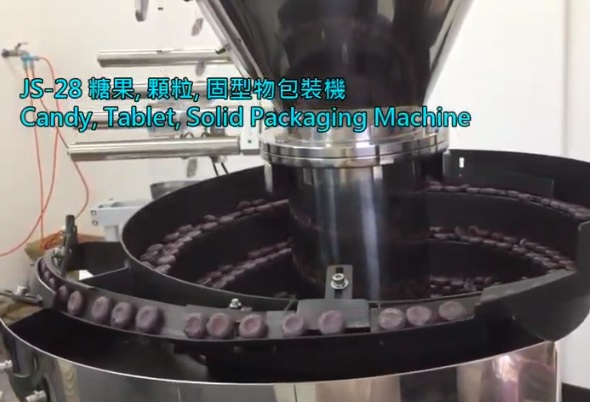

- Vibration tray loading with sensor control filling time.
- Automatic line up product into track for filling
- Filling track is customized which with auto refill function ensure good quantity.
- Sealing & cutting pressure meter display.
- Machine build with auto calibration to have correct product filling & bag cutting position.
- PID function Temp. controller for each sealing part with stable sealing performance.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- Bag width is adjustable by changing bag former guide.
- Machine build with iron cast with stainless steel frame.
Mechanical Type
Mechanical Type Machine Features：
- Mechanical type operation with 1/4 motor, reducer, chains, and gear.
- Special design filling system for accurate and efficient packaging process.
- PLC controlled photocell device with auto track function.
- Vibration tray loading with sensor control filling time.
- Automatic line up product into track for filling
- Filling track with auto refill function ensure good quantity.
- All component in direct contact with product are made with SS304 or food sanitary standard.
- Individual Temp. Controller with PID function for stable sealing performance.
- Bag width is adjustable by changing bag former guide.
- Packing speed and bag length are adjustable on the machine directly.
- Machine build with iron cast with painting frame. Stainless steel frame available upon request.
Optional Device：
Date coder, hopper level indicator, product output conveyor, nitrogen air connector, and other required device upon request.
Applicable Products：
Various granule, such as: capsule, tablet, candy, screw, round type, rectangle type or other shape in solid product.
Applicable Film：
Heat seal suitable cotton filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.
Sealing Type：
JS-28 Servo Type
JS-28 Mechanical Type
Sealing Style
Motor
Power
Film Width
Bag Length
Filling
Packaging Speed
Machine Dimension
Net Weight
Note：
- Other packaging sizes available upon request.
- Filling range& Packaging speed will be differ from product density, weight & film.
- 6kg/cm2 compressed air with dry air filtering system self-prepared is required.
