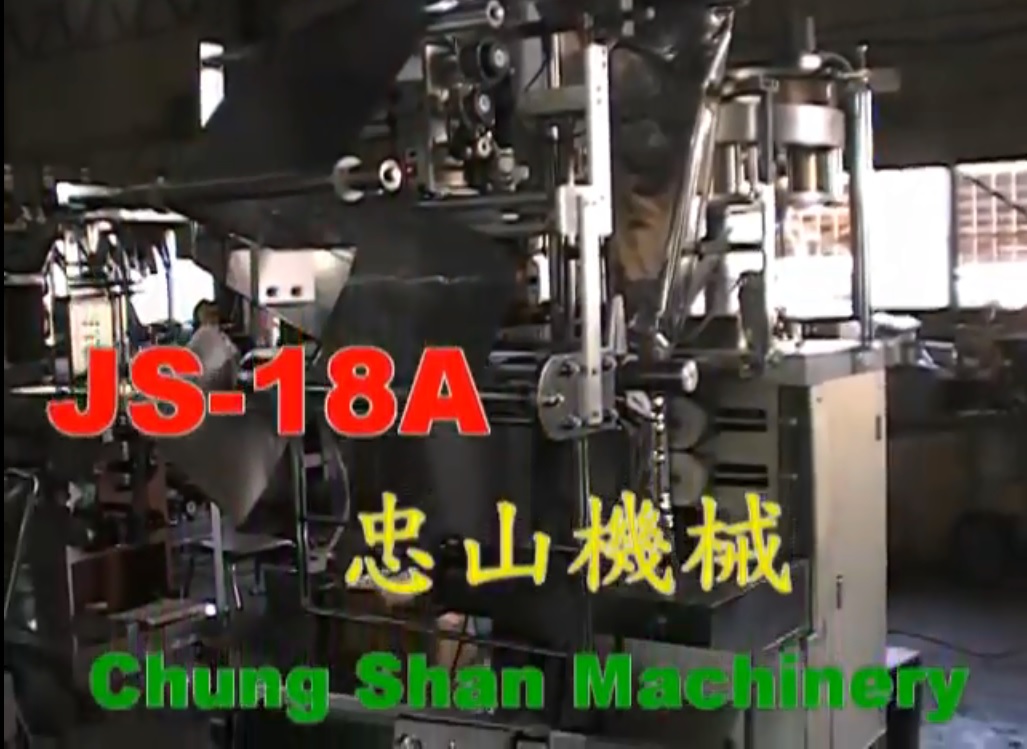

JS-18A PLC Control+Pneumatic Sealing

JS-18A PLC Control + Pneumatic Sealing

Automatic Quantitative Powder & Granule Filling & Packaging Machine

Machine Features:

  • PLC controlled with touch panel for ease operation.
  • Volumetric Filling method with metering dish & cups.
  • Touch panel enable to set up: bag length, eye mark cutting, vibration, counter, sealing temperature, packaging data memory…etc.
  • Pneumatic sealing construction with SMC cylinder drive for stable sealing performance.
  • Sealing and cutting operations are air cylinder activated for fast, highly efficient operations.
  • Pneumatic sealing enable to set up sealing & cutting time according request.
  • Japanese SMC cylinder for stable sealing & cutting performance.
  • Film tension control for stable film filling & pulling.
  • Vibration loading & agitator for low fluidness product to ensure smooth filling process.
  • Magnetic knocker support product filling completely.
  • Convenient auto quantity warning function for efficient package.
  • Auto warning display for quick trouble shooting.
  • PID function Temp. controller for each sealing part with stable sealing performance.
  • All component in direct contact with product are made with stainless steel or food sanitary standard.


Optional Device:

Date coder, hopper level indicator, product input / output conveyor, nitrogen air connector and other required device upon request.


Applicable Products:

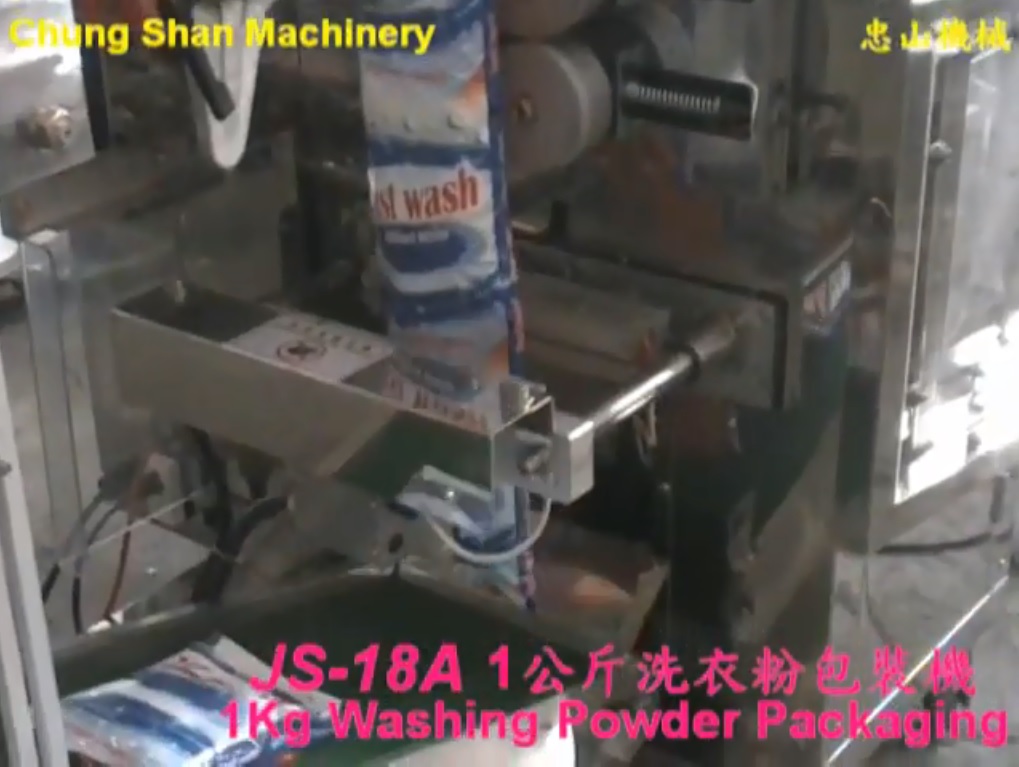

Various powder & granule, such as: sugar, salt, seasoning powder, beans, nuts, seeds, detergent powder…etc.


Applicable Film:

Heat seal suitable filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Type:

JS-18A PLC Control + Pneumatic Sealing

Elementor Pro

View Details!
Sealing Style

Pillow type packaging(one option)


40W*1, 60W*1, 120W*1


220V, 50/60 Hz, single phase(upon request)

Film Width


Bag Length


Filling Weight

100-500g/500-1000g (varies with product density)

Packaging Speed

About 10-20 bags/min

Machine Dimension

150 x 145 x 225cm(L x W x H)

Net Weight



  • Other packaging size available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
  • 6kg/cm2 compressed air with dry air filtering system self-prepared is required.
