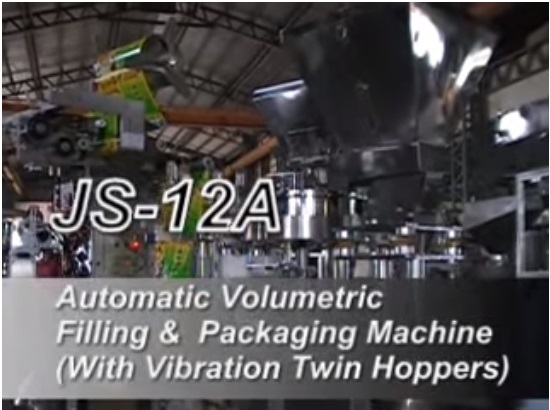

JS-12A Servo Type+Touch Panel+Two Hopper loading

JS-12A Servo Type + Touch Panel + Two Hopper Loading

Automatic Quantitative Powder & Granule Filling & Packaging Machine

Machine Features:

  • Servo motor with Touch panel for user friendly operation.
  • Touch panel enable to set up: cutting mode (eye mark cutting or length cutting), packing speed, vibration,  counter,  sealing temperature, packaging data memory…etc.
  • Two hopper loading to mix different products.
  • Individual servo motor control for each part.
  • Enable to operate one hopper according to request.
  • Multiple memory programs to record/read different packaging data.
  • Auto eye mark tracing in a short time.
  • Auto warning display for quick trouble shooting.
  • Convenient auto quantity warning function for efficient package.
  • Machine build with auto calibration to have correct product filling & bag cutting position.
  • Volumetric Filling method with metering dish & cups.
  • All component in direct contact with product are made with SS304 or food sanitary standard.
  • PID function Temp. controller for each sealing part with stable sealing performance.
  • Bag width is adjustable by changing bag former guide.
  • Bag length 50-200mm is adjustable on the panel directly.
  • Machine build with iron cast with stainless steel frame.
  • More hopper loading & vibration function available upon request.



Optional Device:

Date coder, hopper level indicator, product input/output conveyor, nitrogen air connector, height adjustable dish and other required device upon request.



Applicable Products:

Various powder & granule, such as: sugar, salt, tea, grain powder, 2 in 1 coffee, 3 in 1 coffee, seasoning powder, milk powder, ground coffee, detergent powder, …etc.



Applicable Film:

Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.



Sealing Type:

JS-12A Servo Type + Touch Panel + Two Hopper Loading

Elementor Pro

View Details!
Sealing Style

3 sides, 4 side or pillow type packaging(one option)

Motor

Servo Motor

Power

220V, 50 or 60 Hz, single phase(upon request)

Film Width

60-160 or 80-220mm

Bag Length

50-200mm

Filling Weight

1-10g / 10-30g / 30-60g / 60-100g (varies with product density)

Packaging Speed

About 20-50 bags/min

Machine Dimension

195 x 155 x 225cm(L x W x H)

Net Weight

480kg

Note:

  • Other packaging sizes available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
