JS-10A Servo Type+Vibration loading

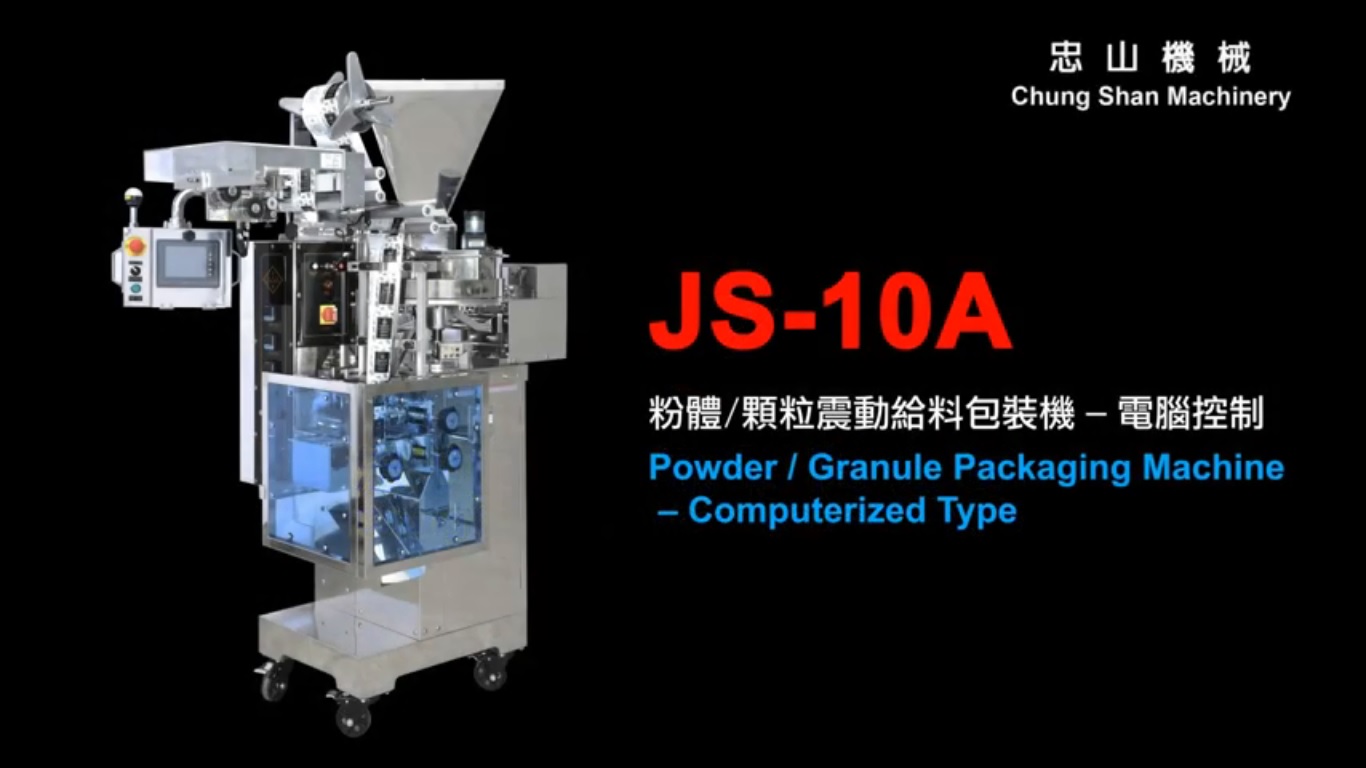

JS-10A Servo Type + Vibration Loading

Automatic Quantitative Powder & Granule Filling & Packaging Machine

Machine Features:

  • Servo motor with Touch panel for user friendly operation.
  • Touch panel enable to set up: cutting mode (eye mark cutting or length cutting), packing speed, vibration, counter, sealing temperature, packaging data memory…etc.
  • Multiple memory programs to record/read different packaging data.
  • Auto eye mark tracing in a short time.
  • Auto warning display for quick trouble shooting.
  • Convenient auto quantity warning function for efficient package.
  • Machine build with auto calibration to have correct product filling & bag cutting position.
  • Vibration loading & agitator for low fluidness product to ensure smooth filling process.
  • Volumetric Filling method with metering dish & cups.
  • Product level sensor on metering dish for auto refill from hopper ensure stable filling weight.
  • Magnetic knocker support product filling completely.
  • All component in direct contact with product are made with SS304 or food sanitary standard.
  • PID function Temp. controller for each sealing part with stable sealing performance.
  • Bag width is adjustable by changing bag former guide.
  • Bag length 50-200mm is adjustable on the panel directly.


Optional Device:

Date coder, hopper level indicator, product input/output  conveyor, nitrogen air connector, height adjustable dish and other required device upon request.


Applicable Products:

Various powder & granule, such as: sugar, salt, tea, grain powder, green tea powder, seasoning powder, milk powder, ground coffee, detergent powder, …etc.


Applicable Film:

Heat seal suitable filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Type:

JS-10A Servo Type + Vibration Loading

Elementor Pro

View Details!
Sealing Style

3 sides, 4 side or pillow type packaging(one option)


Servo Motor


220V, 50/60 Hz, single phase(upon request)

Film Width

60-160 or 80-220mm

Bag Length


Filling Weight

1-10g / 10-30g / 30-60g / 60-100g (varies with product density)

Packaging Speed

About 20-90bags /min

Machine Dimension

135 x 105 x 200cm(L x W x H)

Net Weight



  • Other packaging sizes available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
