JS-10 Mechanical Type

JS-10 Mechanical Type

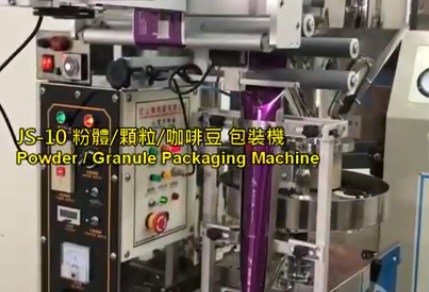

Automatic Quantitative Powder & Granule Filling & Packaging Machine

Machine Features:

  • Mechanical type operation with 1/4 motor, reducer, chains, and gear.
  • Volumetric Filling method with metering dish & cups.
  • Metering cups are easily to change within few minutes.
  • All component in direct contact with product are made with SS304 or food sanitary standard.
  • PLC controlled photocell device with auto track function.
  • Individual Temp. controller with PID function for stable sealing performance.
  • Bag width is adjustable by changing bag former guide.
  • Bag length is adjustable on the machine directly.
  • Machine constructed by iron cast for long time operation stability & durability.
  • Servo type construction available upon request.


Optional Device:

Date coder, level indicator, mixer device, output conveyor, nitrogen air connector, quantity warning, stainless steel frame, height adjustable dish and other required device upon request.


Applicable Products:

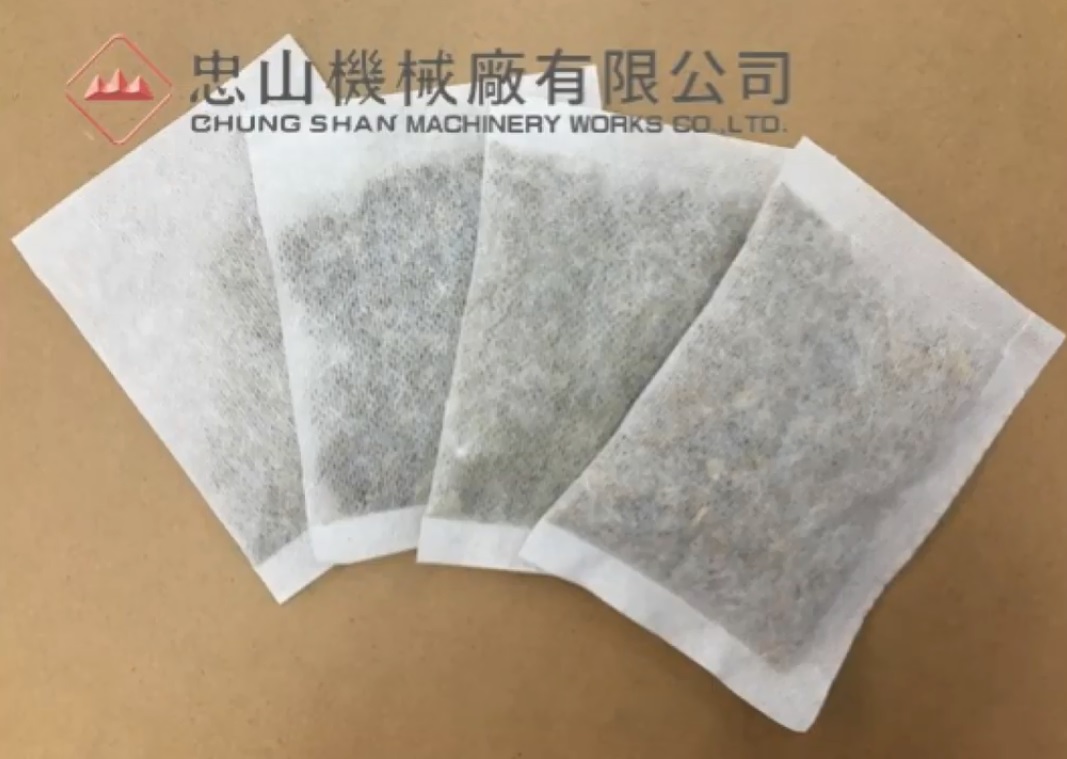

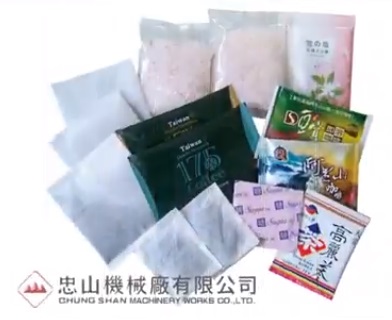

Various powder & granule, such as: tea, 3 in 1 coffee, coffee bean, milk tea powder, herbal tea, peanuts, chocolate ball, crackers, pet food…etc.


Applicable Film:

Heat seal suitable cotton filter paper, double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Type:

JS-10 Mechanical Type

Elementor Pro

View Details!
Sealing Style

3 sides, 4 side or pillow type packaging(one option)


1/4HP standard Motor x 1, Reducer x 1


220V, 50 or 60 Hz, single phase(upon request)

Film Width

60-160 or 80-220mm

Bag Length

50-110 or 70-160mm

Filling Weight

1-10g / 10-30g / 30-60g / 60-100g (varies with product density)

Packaging Speed

About 20-90 bags /min

Machine Dimension

75 x 60 x 175cm(L x W x H)

Net Weight



  • Other packaging sizes available upon request.
  • Filling weight& Packaging speed will be differ from product density, weight & film.
