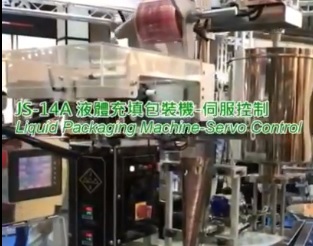

JS-14 Servo Type+Touch Panel

JS-14 Servo Type + Touch Panel

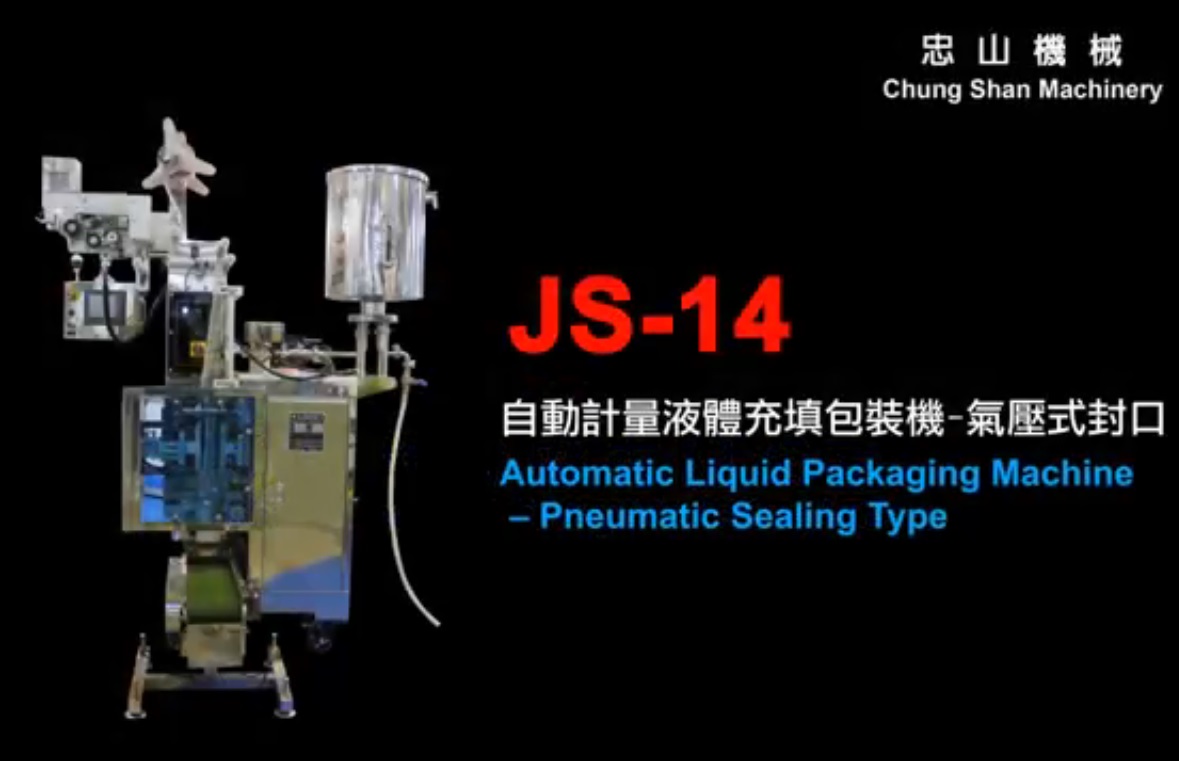

Automatic Quantitative Liquid Filling & Packaging Machine

Machine Features:

  • Servo Motor control for ease & efficient packaging works.
  • 90% setting are through touch panel for user friendly operation.
  • Touch panel enable to set up: filling volume, cutting mode (eye mark cutting or length cutting), packing speed, counter, quantity warning, sealing temperature, packaging data memory…etc.
  • Speed adjustable mixer device upon request.
  • Auto detect function with quick trouble shooting display.
  • Multiple memory programs to record packaging data.
  • Patent design anti-drop filling function ensure clean sealing performance.
  • Piston injection with screw control for accurate filling volume.
  • Safety sealing line at side with tight sealing performance.
  • Individual temperature controller with PID function for each sealing part.
  • Bag width is adjustable by changing bag former guide.
  • All component in direct contact with product are made with stainless steel or food sanitary standard.


Optional Device:

Date coder, double jacketed heated hopper, pressure type hopper, level indicator, mixer device, output conveyor, nitrogen air connector, and other required device upon request.


Applicable Products:

  • Food related, such as: oil, chicken essence, bubble tea, tomato ketchup, soy sauce, paste, chili sauce, honey, juice, wasabi, mayonnaise, jelly…etc.
  • Cosmetic related, such as: lotion, cream, shampoo, conditioner, foundation, gel…etc.
  • Other items, such as: grease oil, biotechnology product, and other liquid & paste products.


Applicable Film:

Double layer heat sealable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Style:

JS-14 Servo Type+Touch Panel

Elementor Pro

View Details!
Sealing Style

3 sides, 4 side or pillow type packaging(one option)


Servo Motor Control


220V, 50/60 Hz, single phase(upon request)

Film Width

60-140mm or 80-220mm

Bag Length


Filling Weight

1-10g / 10-50g / 50-100g (varies with product density)

Packaging Speed

About 20-90 bags/min

Machine Dimension

115 x 103 x 200cm(L x W x H)

Net Weight



  • Other packaging sizes available upon request.
  • Filling range& Packaging speed will be differ from product density, weight & film.
  • 6kg/cm2 compressed air with dry air filtering system self-prepared is required.
