JS-14 Mechanical Type

JS-14 Mechanical Type

Automatic Quantitative Liquid Filling & Packaging Machine

Machine Features:

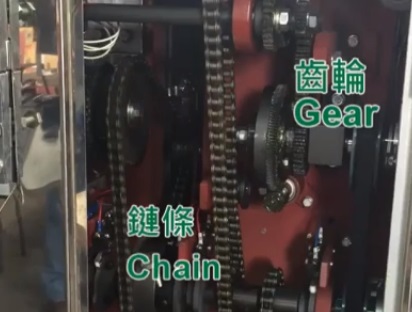

  • Mechanical type operation with 1/4 motor, reducer, chains, and gear.
  • Piston injection filling, filling volume and packing speed adjustable on the machine directly.
  • PLC controlled photocell device with auto tracing function.
  • Patent design anti-drop filling ensure clean sealing performance.
  • Safety sealing line at side with tight sealing performance.
  • All component in direct contact with product are made with stainless steel or food sanitary standard.
  • Individual temperature controller with PID function for each sealing part.
  • Bag width is adjustable by changing bag former guide.
  • Bag length 50-110mm or 70-160mm manually adjustable on the machine.


Optional Device:

Date coder, double jacketed heated hopper, pressure type hopper, level indicator, mixer device, output conveyor, nitrogen air connector, quantity warning, stainless steel frame…etc., and other required device upon request.


Applicable Products:

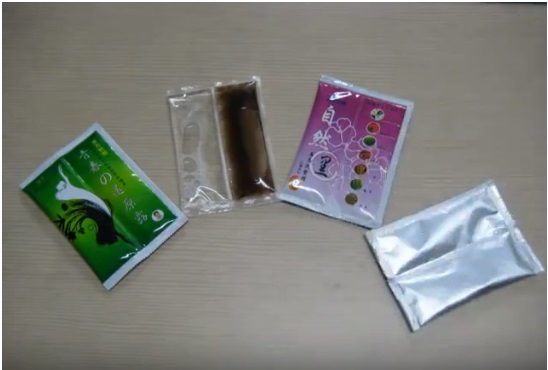

  • Food related, such as: oil, tomato ketchup, chicken essence, soy sauce, paste, chili sauce, honey, juice, wasabi, mayonnaise, jelly…etc.
  • Cosmetic related, such as: lotion, cream, shampoo, conditioner, foundation…etc.
  • Other items, such as: grease oil, biotechnology product, and other liquid & paste products.


Applicable Film:

Double layer heat seal suitable laminated film, such as: PET+LLDPE, PET+MPET+CPP, PET+PE+AL+LLDPE, Nylon+LLDPE…etc.


Sealing Style:

JS-14 Mechanical Type

Elementor Pro

View Details!
Sealing Style

3 sides, 4 side or pillow type packaging(one option)


1/4HP Motor


220V, 50 or 60 Hz, single phase(upon request)

Film Width

60-140 or 80-220mm

Bag Length

50-110 or 70-160mm

Filling Weight

1-10 / 10 – 30 / 30-80 / 80-150 (varies with product density)

Packaging Speed

About 20-60 bags/min

Machine Dimension

80 x 85 x 195cm(L x W x H)

Net Weight



  • Other packaging sizes available upon request.
  • Filling range& Packaging speed will be differ from product density, weight & film.
  • 6kg/cm2 compressed air with dry air filtering system self-prepared is required.
